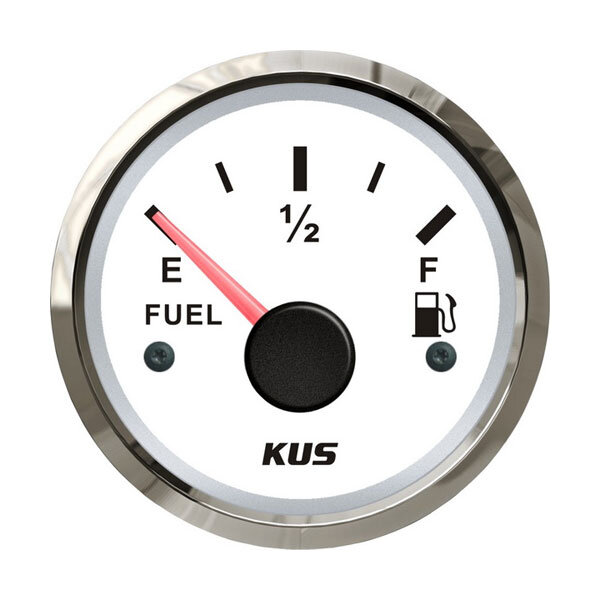

KUS analog fuel level gauge - white

9 watch this article

26,66 €

incl. 22% VAT , plus

For this product you will receive 26.66 Reward Points

Color white
black blackwhite white

Only 2 Pcs. left in stock!

Pcs.

2 Pcs. In stock

Delivery time: 6 - 8 Workdays

Order within the next 2 days and 17 hours and 6 minutes and we will ship your order on 1.9.

Stock in the external warehouse 20 piece
Delivery time: 3 Working days

KUS analog fuel level gauge - white

26,66 €

incl. 22% VAT , plus

Pcs.

KUS Marine Analog Fuel Gauge 52mm – Reliable Gasoline & Diesel Gauge for Your Boat

Always keep a close eye on your fuel reserves while on the water! The analog KUS fuel gauge provides you with an absolutely reliable and precise reading of the fuel level in your gasoline or diesel tank. This universal instrument is the proven standard for recreational boats, inflatable boats, and yacht cockpits, helping you avoid unpleasant surprises on the water.

Thanks to itsstandard mounting diameter of 52 mm (2 1/16"), the gauge can be easily integrated into existing dashboards or control panels. The elegant bezel made of corrosion-resistant AISI 316 stainless steel (NIRO ring) and white dial ensures a timeless, sophisticated design at your helm.

⚠️ Important note regarding sensor compatibility:

This fuel gauge works exclusively with the European standard resistance range of 0–190 ohms (the gauge displays “Empty” at 0 ohms and “Full” at 190 ohms). Please check the resistance of your existing fuel sender before purchasing.

Does your system use a U.S. standard (240–33 ohms) or other values? No problem:

Simply use our handy KUS ohm converter / resistance changer to adapt existing sensor signals in seconds.
Or upgrade directly to a perfectly matched, durable KUS NIRO S5 immersion tube sensor for fuel and water tanks (0–190 ohms) with an SAE 5-hole flange from our store. This sensor is also available with a 1 1/4" BSP male thread: KUS NIRO Immersion Tube Sensor Model S3 for fuel and water tanks.

Advantages & Technical Highlights at a Glance:

100% Waterproof & Rugged: Certified to IP67 protection class. The front is completely dust- and waterproof. The double-layered, reinforced anti-fog glass prevents condensation buildup during extreme temperature changes.
Dual Operating Voltage: Can be used directly in 12-volt and 24-volt vehicle electrical systems without additional series resistors.
Adjustable Backlighting: Use the simple terminal configuration during connection to flexibly choose between bright red or yellow backlighting —to match the look of your other cockpit instruments.

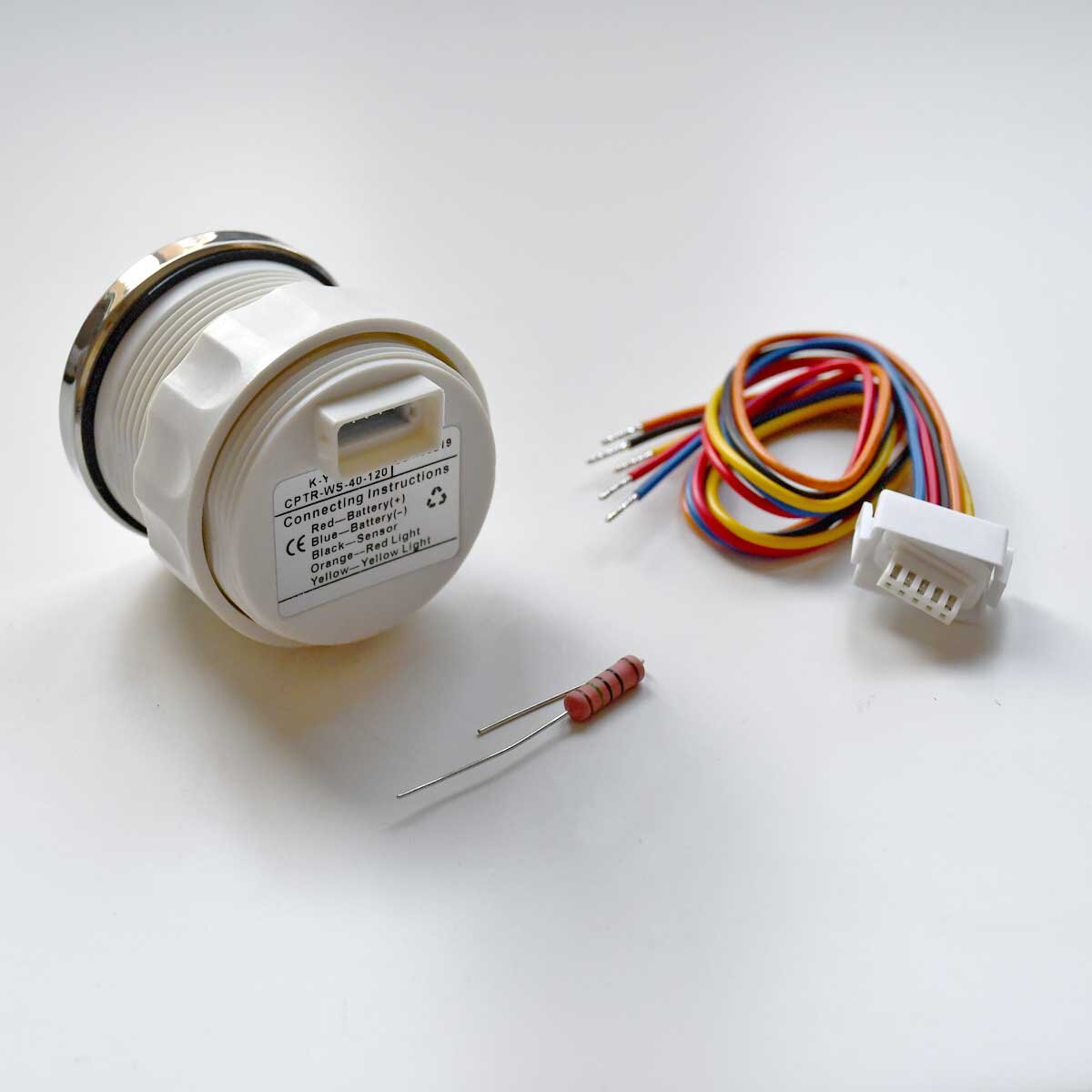

Simple multi-plug connection system: The package includes the matching locking connector with cable ends for a quick, secure, and vibration-resistant installation at the helm.

🛠️ Accessory & Cross-Selling Tip from Tenten-Boats:

To complete your engine monitoring system, we recommend adding the visually perfectly matched KUS voltmeter or the compatible KUS tachometer with operating hour counter for outboard motors, or the KUS tachometer with operating hour counter for inboard motors from the same design series.

Would you like to install the instrument in a new panel? Order the matching 52mm/85mm hole-pattern saw directly with your order.

Technical Data (Specifications):

Feature	Specification / Value
Manufacturer / Brand	KUS
Model Series	Sea V (Analog Fuel Gauge)
Mounting Diameter	52 mm (2 1/16 inches)
Bezel Material	AISI 316 stainless steel (NIRO)
Protection Class	IP67 (waterproof on the front)
Input signal (resistance)	0–190 ohms (European standard)
Operating voltage	12 V / 24 V DC
Backlight	Red or yellow (selectable)
