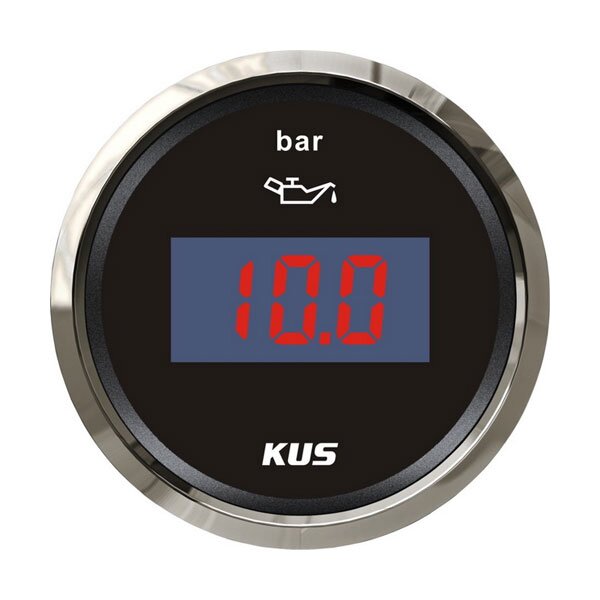

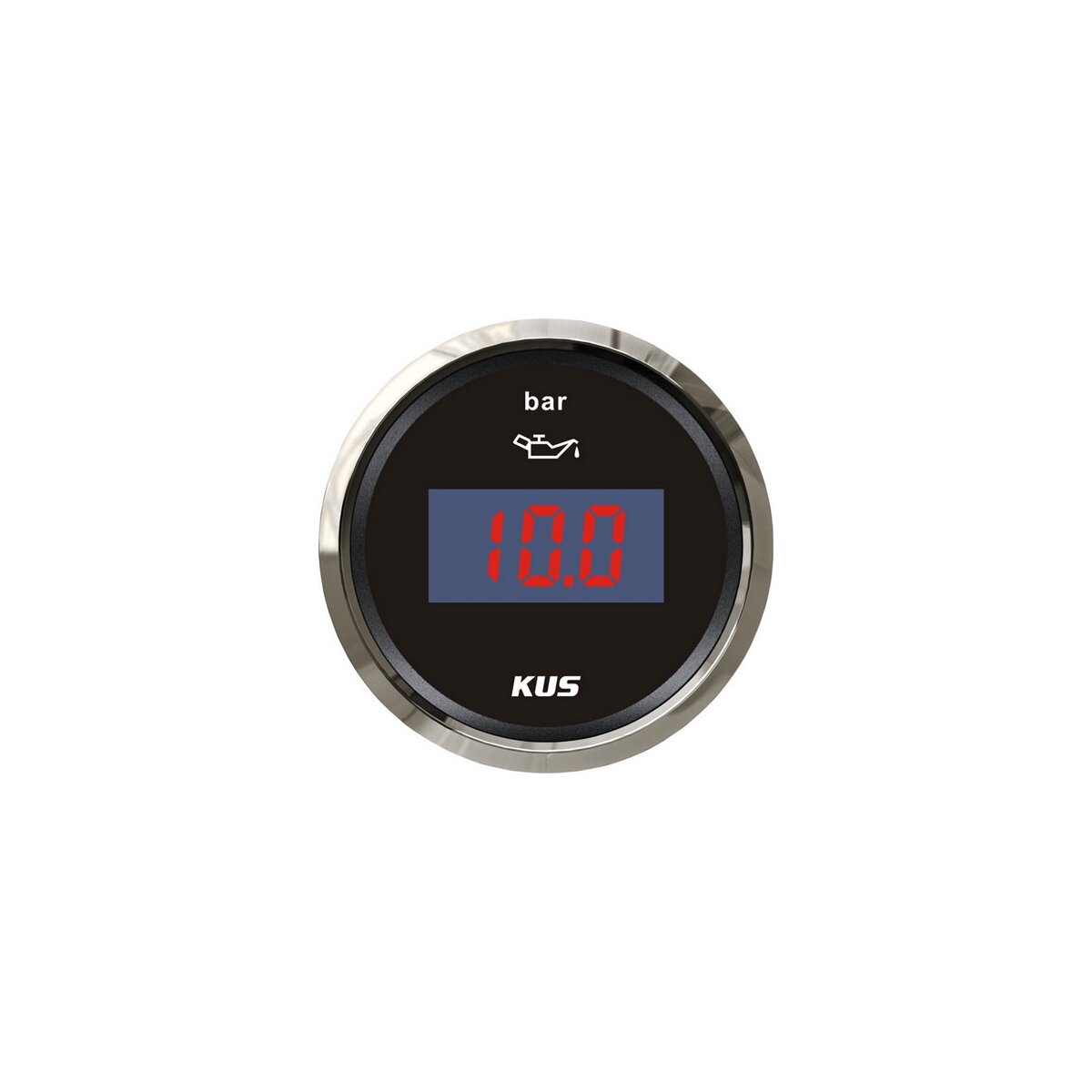

KUS Digital LCD Oil Pressure Gauge (0–10 bar) – Black

sold in last

watch this article

34,96 €

incl. 22% VAT, plus

Version: Black (10 bar / 145 psi) – Extended numerical measurement range up to 10 bar for high-performance inboard engines. Black LCD background, polished stainless steel bezel (52 mm), and full IP67 water and dust protection. Signal range: 10–184 ohms.

For this product you will receive 34.96 Reward Points

Color schwarz
schwarz schwarzweiß weiß
Display range 0-10 bar
0-5 bar 0-5 bar0-10 bar 0-10 bar

Only 1 Pcs. left in stock!

Pcs.

1 Pcs. In stock

Delivery time: 6 - 8 Workdays

Tempo rimanente per ordinare: 14 ore e 56 minuti. Spediremo il tuo ordine al 26.10.

Stock in the external warehouse 16 piece
Delivery time: 3 Working days

KUS Digital LCD Oil Pressure Gauge (0–10 bar) –...

34,96 €

incl. 22% VAT, plus

Pcs.

KUS Marine Digital LCD Oil Pressure Gauge 52mm – Reliable Engine Protection with Precise Readings

Reliably protect your inboard engine from catastrophic bearing damage! The digital KUS oil pressure gauge provides continuous, real-time numerical monitoring of the lubricating oil pressure (0–5 bar / 0–10 bar). Thanks to the clear digital display, you can immediately detect even the slightest drops in pressure in the system without delay.

The round gauge features the standardmounting diameter of 52 mm (2") and, thanks to its polished **stainless steel ring (AISI 316 / NIRO)**, is completely resistant to seawater and corrosion in the cockpit.

⚠️ Important note regarding the sensor resistance (10–184 ohms):

The readings on this digital gauge are based on the international standard characteristic curve ranging from 10 to 184 ohms.

Please ensure that your installed oil pressure sensor supports this ohm range, or order the perfectly compatible KUS oil pressure sensor directly from our store.

Technical Data (Specifications):

Property	Specification / Value
Manufacturer / Brand	KUS
Display Range	0–5 bar (0–75 psi) or 0–10 bar (0–145 psi) / Numeric LCD
Mounting Diameter	52 mm (2 inches)
Input signal (resistance)	10–184 ohms (standard characteristic curve)
Front protection rating	IP67 (water- and dust-tight)
Operating voltage	12 V / 24 V DC Plug & Play
